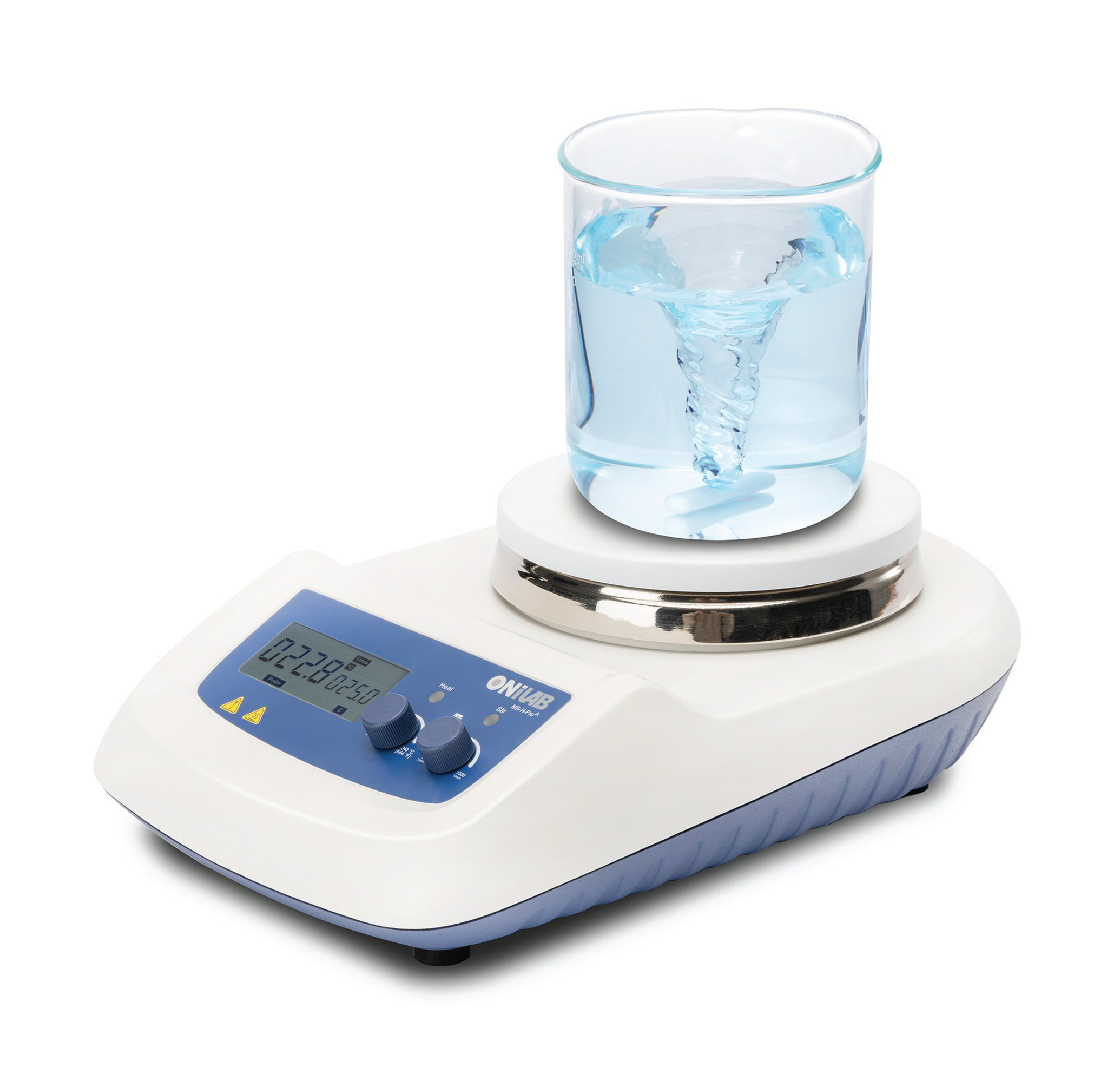

Magnetic Hotplate Stirrers (MS-H-PROA)
- Digital control with max. temperature at 340℃，max speed up to 1500rpm.
- Aluminum cover with ceramic coating work plate provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
- High-resolution LCD display shows actual temperaturesand speed.
- PID controller ensures a precise and steady heating process.
- External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
- Brushless DC motor enables more powerful speed control.
- Three heating modes for selected ( fast heating, standard heating and stable heating ).
- Remote control function through RS232 interface provides PC control and data transmission.
Specifications MS-H-ProA Work plate dimension φ135mm(5inch) Work plate material Aluminum cover with ceramic
coating
Motor type Brushless DC motor Heating temperature range Room temp.-340℃,
increment 1℃
Temperature display accuracy ±0.1℃ Heating power 600w Speed range 100-1500rpm resolution±1rpm Max. stirring quantity[H2O] 20L Speed display LCD Temperature display LCD Motor rating input 18w Motor rating output 10w Max. magnetic bar[length] 80mm Temperature control accuracy ±1°C(<100℃) ±1%(>100℃) External temperature sensor PT1000 (accuracy ±0.2℃) Over temperature protection 420℃ "Hot" warning 50℃ Data connector RS232 Protection class IP21 Voltage 100~120/200-240V 50/60Hz Power 650w Dimension[WxDxH] 280×160×85mm Weight 2.8kg
