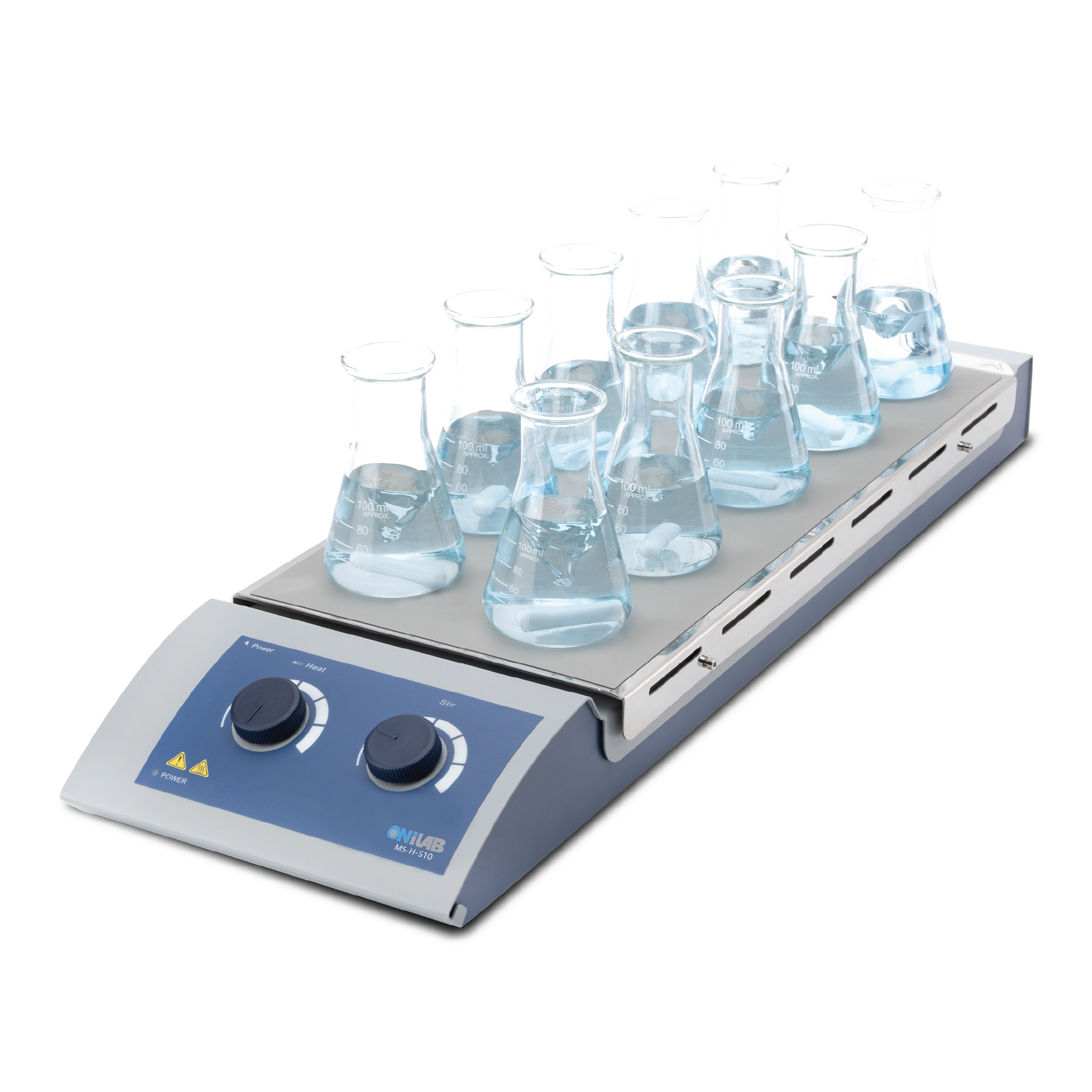

Magnetic Hotplate Stirrers (MS-H-S10)
- Maintenance-free brushless DC motor
- Max speed 1100rpm
- Max.temperature 120°C
- Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance
Specifications MS-H-S10 Work plate Dimension 180x450mm Work plate material Stainless steel with silicone Motor type Brushless DC motor Motor rating input 12W Motor rating output 4W Power 490W Heating output 470W Voltage 100-120/200-240V 50/60Hz Stirring positions 10 Max. stirring quantity[H2O] 0.4Lx10 Max. magnetic bar[length] 40mm Speed range 0-1100rpm Speed display scale Temperature display scale Heating temperature range Room temp.-120°C Over heat Protection 140°C Temperature display accuracy IP42 Dimension [W x D x H] 182×622×65mm Weight 3.2kg Permissible ambient
temperature and humidity
5-40℃ 80%RH
