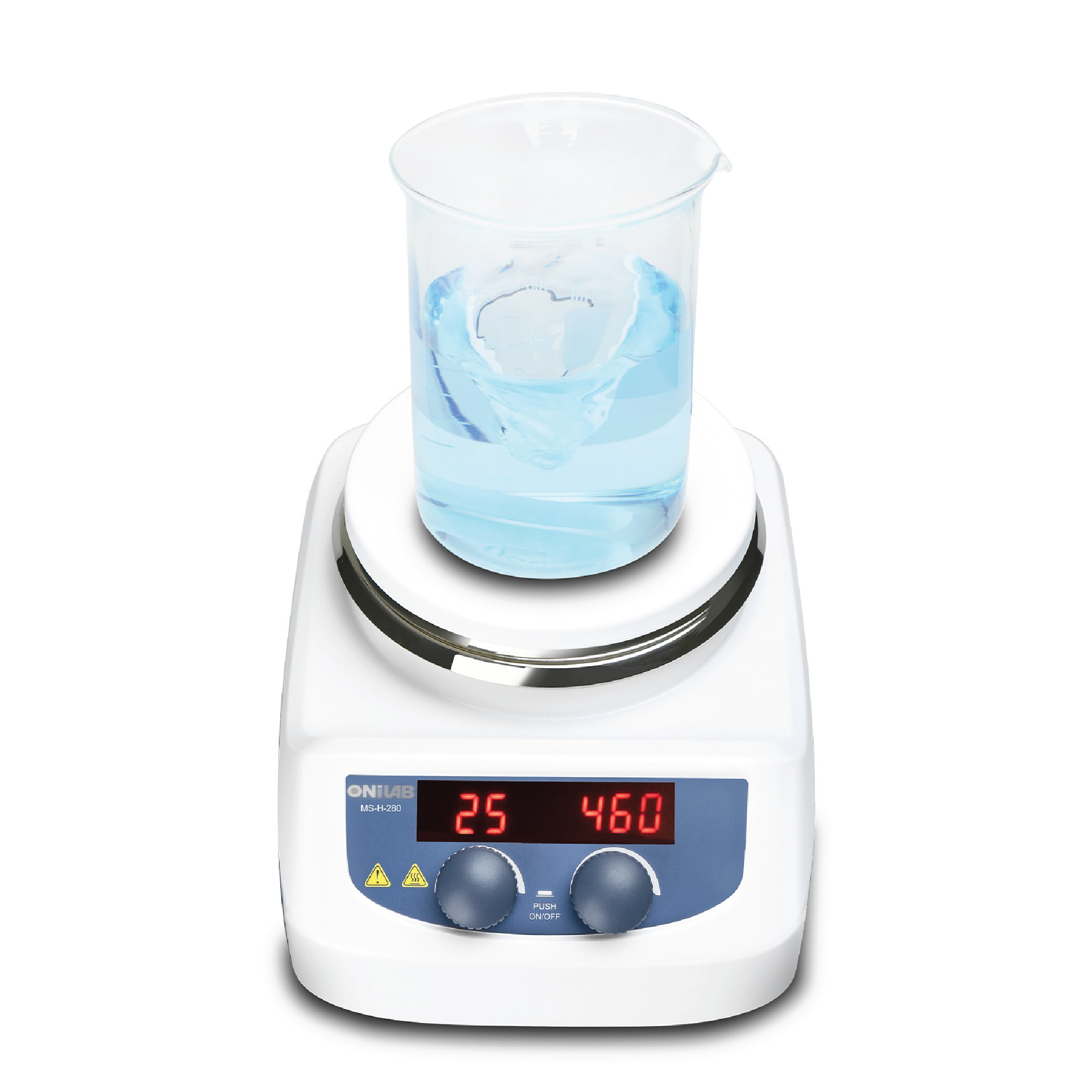

Magnetic Hotplate Stirrers (MS-H280-Pro)
- Digital temperature control with max. temperature up to 280°C
- Digital speed control with max. speed up to 1500rpm
- Stainless steel work plate with ceramic coating provides good chemical resistant performance
- External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C
- LED display shows temperature and speed
- The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
Specifications MS-H280-Pro Work plate Dimension φ135mm(5 inch) Work plate material stainless steel cover
with ceramic
Motor type Brushless DC motor Motor rating input 5W Motor rating output 3W Power 515W Heating output 500W Voltage 100-120/200-240V
50/60Hz
Stirring positions 1 Max. stirring quantity[H2O] 3L Max. magnetic bar[length] 50mm Speed range 200-1500rpm Speed display LCD Temperature display LCD Speed display resolution ±1rpm Heating temperature range Room temp.-280,
increment 1°C
Control accuracy of work plate ±1°C(<100°C)
±1%(>100°C)
Over heat Protection 320°C Temperature display accuracy ±1°C External temperature sensor PT1000 (accuracy ±0.5°C) "Hot" warning 50°C Protection class IP21 Dimension [W x D x H] 150×260×80mm Weight 1.8kg Permissible ambient
temperature and humidity
5-40℃ 80%RH
