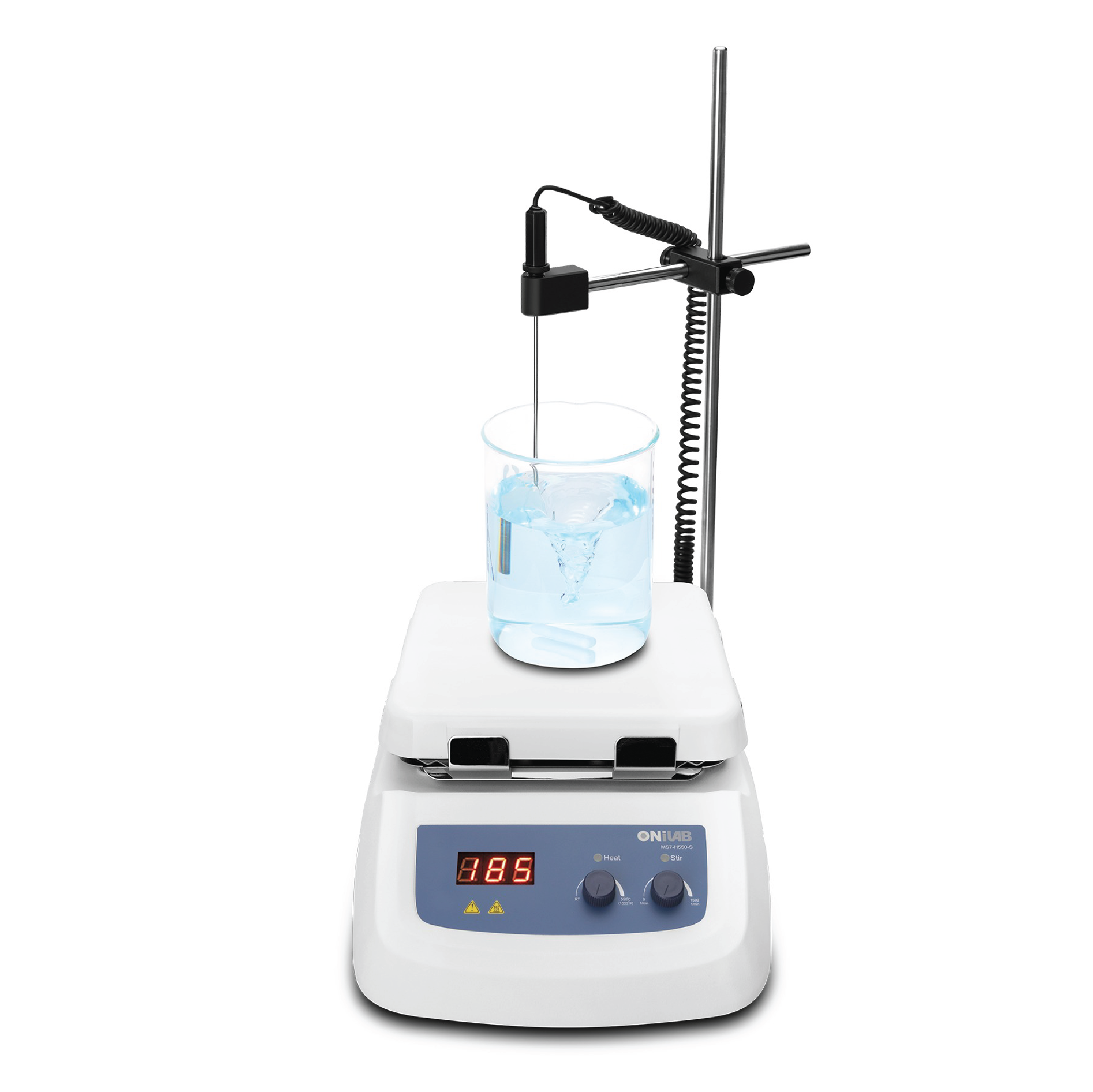

Magnetic Hotplate Stirrers (MS7-H550-S)
- LED display for precise monitoring of temperature
- A wide speed range of 0 to 1500rpm
- Max. Heating plate temperature 550°C
- External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
- The “HOT” warning will flash if the work plate temperature is above 50°C
Specifications MS7-H550-S Work plate Dimension [W x D] 184x184mm (7 inch) Work plate material Glass ceramic Motor type Shaded pole motor Motor rating input 15W Motor rating output 1.5W Power 1030W Heating output 1000W Voltage 100-120/200-240V
50/60Hz
Stirring positions 1 Max. stirring quantity, [H2O] 10L Max. magnetic bar[length] 80mm Speed range 0-1500rpm Speed display Scale Temperature display LED Heating temperature range Room temp.-550°C,
increment 5°C
Temperature control accuracy ±10°C Overheating protection 580°C Temperature display accuracy ±1°C External temperature sensor PT1000 (accuracy ±0.2) "Hot" warning 50°C Protection class IP21 Dimension [WxDxH] 215x360x112mm Weight 4.5kg Permissible ambient
temperature and humidity
5-40°C, 80%RH
