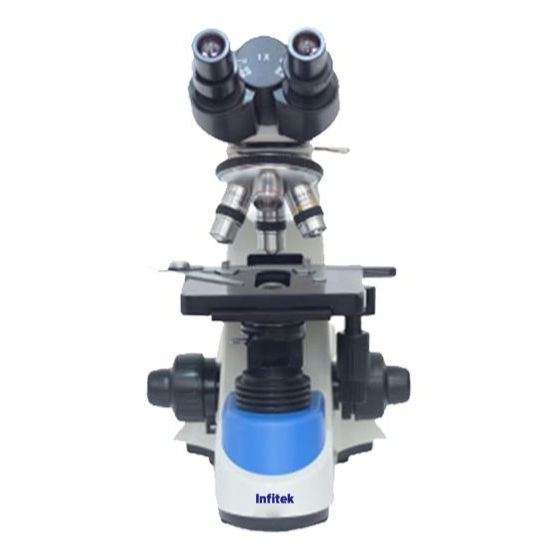

Biological Microscope, MSC-B208(Siedentopf)
MSC-B208 (Siedentopf)
- Seidentopf Binocular Viewing Head at 30°
- Eyepiece: Wide Field eyepiece WF10X18mm
- Achromatic Objective: 4X, 10X, *20X, 40X, 100X
Model MSC-B208(Siedentopf) Optics Finite Distance Optical System /
*Infinity Optical System
Observation Tube Tilting binocular,interpupillary 55-75mm Viewing Head Siedentopf head,inclined at 30° Optical Coating Transmittance ≥ 95% Eyepieces - Wide field eyepiece WF10×18mm
- *Wide field eyepiece WF10×20mm
Objective - Achromatic objective
4X, 10X, *20X,40X, 100X - *Plan achromatic objective:
4X, 10X, 20X, 40X, 100X - *Plan phase objective:
Ph10X, 20X, 40X, 100X - *Infinite plan achromatic objective:
4X, 10X, 20X, 40X,100X
Nosepiece Quadruple nosepiece /
*Quintuple nosepieceStage Double layers mechanical stage
140×135mm / 75×50mm
(*Heating module)Condenser Abbe NA1.25 with iris diaphragm & filter Focusing Coaxial coarse and fine adjustment,
fine division 0.002mm,
coarse stroke 37.7mm per rotation,
fine stroke 0.2mm per rotation,
moving range 22mmIllumination 3W LED Illumination, brightness adjustable
*6V 20W Halogen lamp,
brightness adjustableElectricity 100-240V AC,50/60Hz Package Dimension (W*D*H) (mm) 370*260*490 Gross Weight (Kg) 6.5 *Optional - Turret phase contrast kit, dark field attachment, fluorescent attachment, 360° rotatable viewing head
- MSC-B208T: Microscope camera (Standard imaging software) / Win 10 Pad / Digital display
*Optional Configuration *Optional Configuration
